Provide you with enterprise-level interconnection chips
Single-end, differential, and crystal inputs are flexibly supported
10 single-end outputs, with maximum frequency up to 200 M
Additional jitter<50fs (typical) and propagation delay < 2ns (@3.3V)
Operating temperature: -40°C to 85°C
Package: QFN32

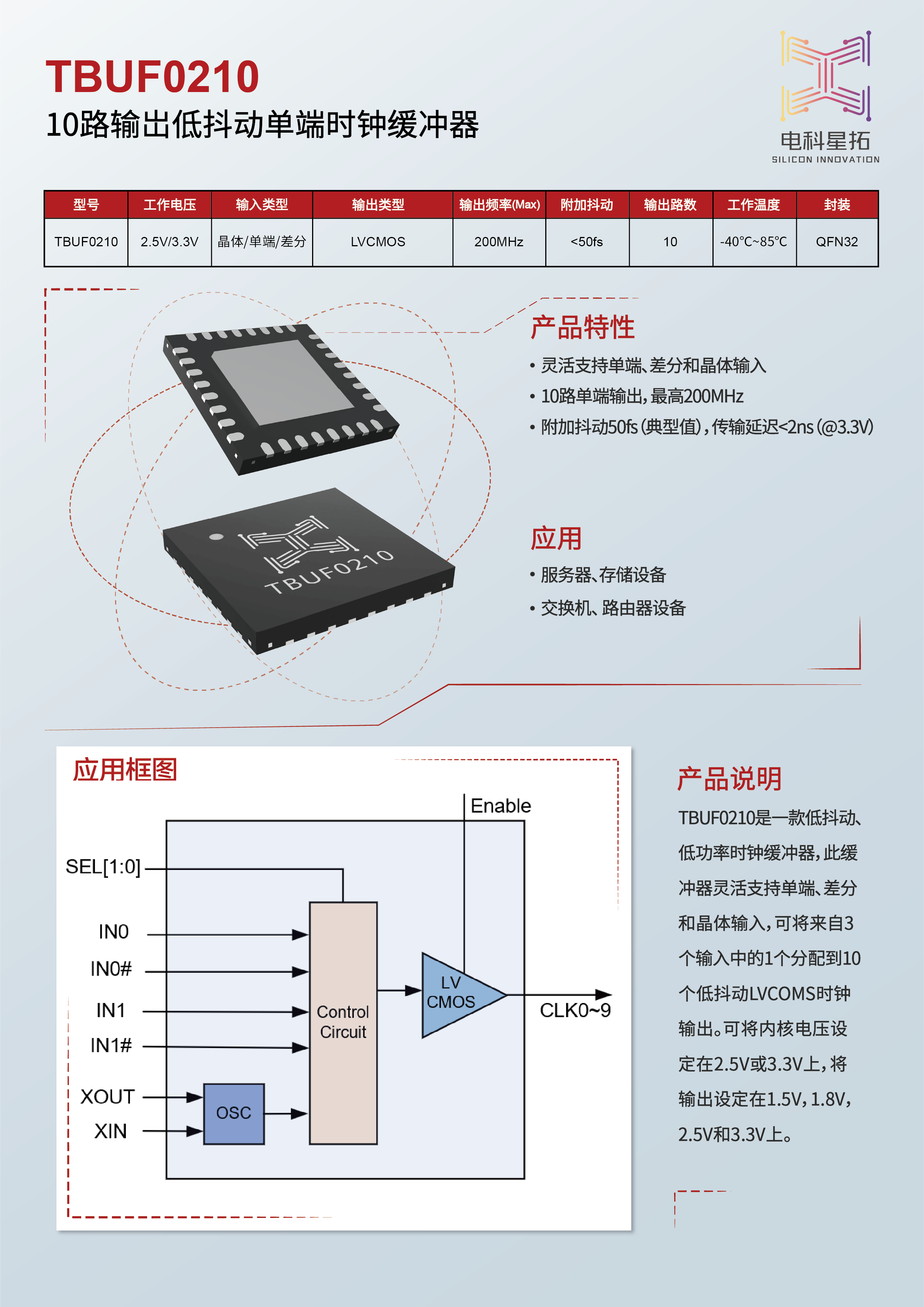

TBUF0210 is a clock buffer with low jitter and low power consumption, which flexibly supports single-end, differential, and crystal inputs. It can distribute 1 of 3 inputs to 10 low-jitter LVCOMS clock outputs and can set the core voltage to 2.5V or 3.3V and the output voltage to 1.5V, 1.8V, 2.5V, and 3.3V.
Application Diagram
Server
Storage
Switch
Router
