TBUF0304 is a high-performance clock buffer. It supports 4 channels of 1.5GHz differential super low jitter outputs, which are mainly used for low jitter, high- frequency clocking and level shifting, and so on. The buffer supports 3 modes of clock source inputs, such as single-end clock, differential clock, or crystal. TBUF0304 can be assigned to two output groups, group A and group B, and one LVCMOS output. The outputs in groups A and B can be independently configured to LVPECL, LVDS, HCSL or HIZ mode. The LVCMOS clock output can be enabled or disabled in sync with the selected clock. TBUF0304 supports a flexible voltage range, with both core and IO voltages supporting either 2.5V or 3.3V.

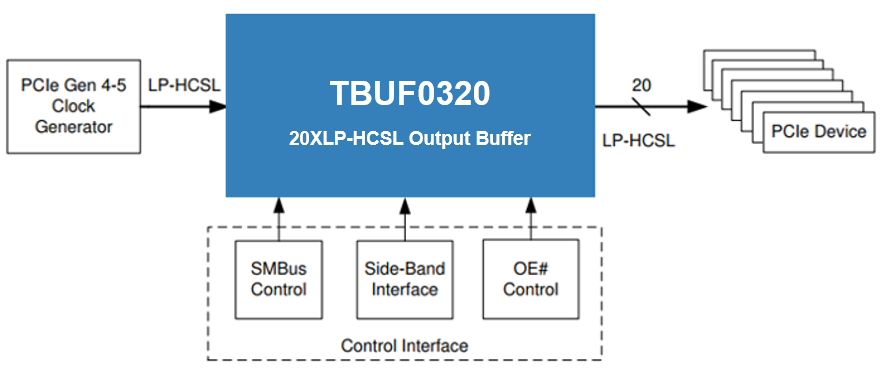

Application Diagram
